Impact Crusher

Impact Crusher

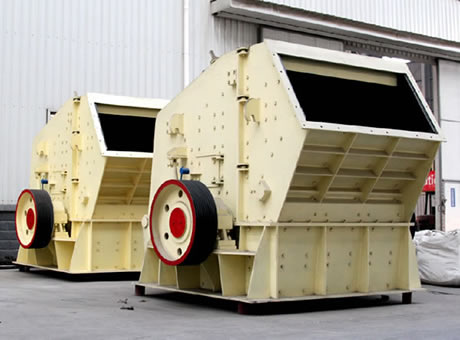

Impact crusher is a kind of crushing machine that uses impacting energy to crush materials.
CLICK TO CHAT SEND INQUIRY
[Overview ]

Impact crusher is suitable for materials whose compressive strength is under 350Mpa, and particle size is less than 500mm. With end products in cubic shape, the impact crusher or impact rotary crusher is widely used for sand and rock producing in the industry of roads, railways, reservoir, electricity power and building materials and so on.

Impact Crusher

Advantages

1. Simple structure, small size, light weight, high production capacity, low production cost.

2. The rocks are crushed along the surface, so that the electricity consumption is lower and the crushing efficiency is higher.

3. High crushing ratio, so that it is able to simplify the crushing process and changes the three-stage crushing into two-stage or single-stage crushing and reduces the cost of the ore beneficiation plants.

Impact Crusher

4. The gap between the impacting plate and the hammer plate can be conveniently changes, thus effectively adjusting the discharging granularity.

5. Comprehensive crushing functions, high production rate and comprehensive interests.

Working Principle

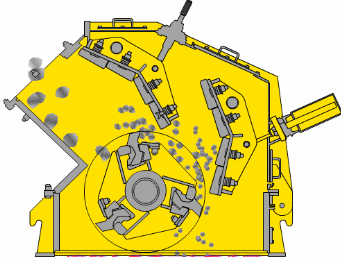

Impact crusher is a kind of crushing machine that uses impacting energy to crush materials. When the machine works, driven by the electro motor, the rotor will rotate with high speed, and when the materials go into the action zone of the plate hammer, they will strike and are crushed on the plate of the rotor, and then are crushed again when they are thrown to the impacting device, and then the materials will bounce back from the impact lining board and go to the action zone of the plate hammer and are crushed again. This process will proceed repeatedly, and the materials go into the first, second and third impacting chamber to be crushed until they are crushed to the required granularity, and then discharged from the discharging mouth. Adjusting the gap between the impacting rack and the rotor can change the discharging granularity and the shape of the materials.

Hongxing Machinery has large and small impact crusher for sale, our impact crusher price is very competitive, if you're interested, please feel free to contact us!

[Technical Data ]

Model Specification (mm) Opening Size (mm) Max. feeding side length(mm) Capacity (t/h) Power (kw) Weight (kg) (Without motor)

Dimensions (l*w*h) (mm)
PF-1007 Ø1000*700 400*730 300 30-70 45 12 2330*1660*2300
PF-1010 Ø1000*1050 400*1080 350 50-90 55 15 2370*1700*2390
PF-1210 Ø1250*1050 400*1080 350 70-130 110 17.7 2680*2160*2800
PF-1214 Ø1250*1400 400*1430 350 100-180 132 22.4 2650*2460*2800
PF-1315 Ø1320*1500 860*1520 500 130-250 220 27 3180*2720*2620
PF-1520 Ø1500*2000 830*2040 700 300-550 440 50.6 3959*3564*3330
